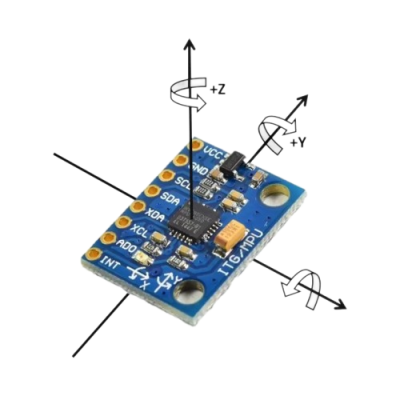

Figure 1: by ElectroniCats, git hub

The MPU-6050 is a 6-axis MEMS (Micro-Electro-Mechanical Systems) sensor that integrates a 3-axis accelerometer and a 3-axis gyroscope into a single compact package. This combination allows for comprehensive motion tracking and orientation detection, making it a popular choice in various applications, from robotics to wearable devices.

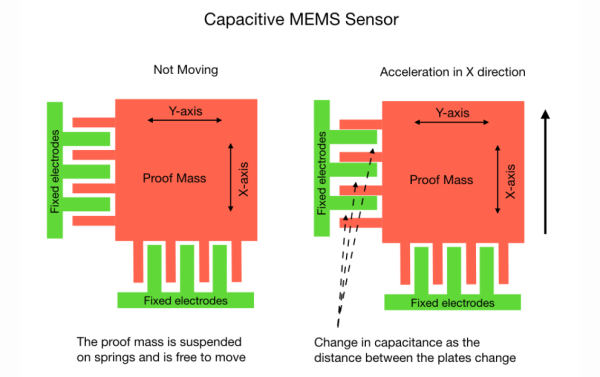

Figure 2: The MPU6050 Explained, available in: https://mjwhite8119.github.io/Robots/mpu6050

The MPU-6050 operates based on the principles of MEMS technology, utilizing microscopic mechanical structures to sense motion.

Accelerometer:

• Capacitive Sensing: Detects linear acceleration by measuring changes in capacitance caused by the displacement of a micro-machined proof mass within the sensor.
• Axes Measurement: Provides acceleration data along the X, Y, and Z axes, enabling detection of movement and orientation changes.

Gyroscope:

• Coriolis Effect: Measures angular velocity by detecting the Coriolis force acting on vibrating elements within the sensor as it rotates.
• Axes Measurement: Captures rotational movement around the X, Y, and Z axes, essential for understanding orientation and rotational dynamics.

Digital Motion Processor (DMP):

• Sensor Fusion: Integrates data from the accelerometer and gyroscope to provide more accurate motion tracking.
• Offloading Computation: Processes complex calculations internally, reducing the computational load on the host microcontroller.

The MPU-6050 communicates via the I2C protocol, providing:

1. Accelerometer Data: Raw acceleration values for X, Y, and Z axes.

2. Gyroscope Data: Raw angular velocity values for X, Y, and Z axes.

3. Temperature Data: Internal temperature readings, useful for calibration and compensation.

The sensor's output is typically in raw digital values, which require scaling and conversion to physical units (e.g., g for acceleration, °/s for angular velocity).

The versatility of the MPU-6050 makes it suitable for a wide range of applications:

• Robotics: Enables balance control, navigation, and motion tracking.
• Drones and UAVs: Assists in flight stabilization and orientation control.
• Wearable Devices: Facilitates activity monitoring and gesture recognition.
• Gaming Controllers: Enhances user interaction through motion sensing.
• Virtual Reality (VR): Provides head tracking for immersive experiences.

The MPU-6050 can be interfaced with microcontrollers like the ESP32-S3 using the I2C protocol. Here's a brief overview:

Wiring:

• VCC: Connect to 3.3V (ensure voltage compatibility).
• GND: Connect to ground.
• SDA: Connect to the microcontroller's I2C data line.
• SCL: Connect to the microcontroller's I2C clock line.

Programming:

• Utilize libraries such as ``Wire.h`` for I2C communication and ``MPU6050.h`` for sensor interaction.

• Initialize the sensor and configure settings like sensitivity and filter bandwidth.

• Read and process data from the accelerometer and gyroscope registers.

Note: While the ESP32-S3 operates at 3.3V logic levels, ensure that the MPU-6050 module used is compatible with 3.3V to prevent damage.

*This section is reserved for practical examples and code snippets demonstrating the use of the MPU-6050 with various microcontrollers and applications.*

To ensure accurate and reliable data from the MPU-6050, consider the following:

Calibration:

• Perform initial calibration to correct for sensor biases and offsets.
• Utilize available libraries or write custom routines to determine and apply calibration values.

Filtering:

• Implement filters (e.g., complementary or Kalman filters) to reduce noise and improve data stability.
• Adjust filter parameters based on the specific application's dynamics and requirements.

Power Supply:

• Ensure a stable and clean power supply to minimize voltage fluctuations that can affect sensor performance.

Physical Placement:

• Mount the sensor securely to prevent vibrations and mechanical noise.
• Isolate the sensor from sources of electromagnetic interference.

Temperature Compensation:

• Account for temperature-induced variations by monitoring the internal temperature sensor and applying compensation algorithms if necessary.

For detailed diagrams and further information, consider the following resources:

- Official Datasheet: MPU-6050 Datashee https://invensense.tdk.com/wp-content/uploads/2015/02/MPU-6000-Datasheet1.pdf

- LastMinuteEngineers Clear explanation and examples https://lastminuteengineers.com/mpu6050-accel-gyro-arduino-tutorial/

- Arduino Playground: MPU-6050 on Arduino Playground https://playground.arduino.cc/Main/MPU-6050/

- DroneBot Workshop Tutorial: Building an Electronic Level Meter https://dronebotworkshop.com/mpu-6050-level/

- Michael Schoeffler's Tutorial: Using GY-521 Module with Arduino Uno https://mschoeffler.com/2017/10/05/tutorial-how-to-use-the-gy-521-module-mpu-6050-breakout-board-with-the-arduino-uno/
